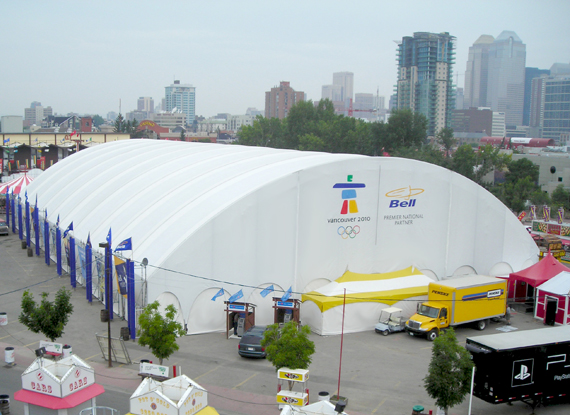

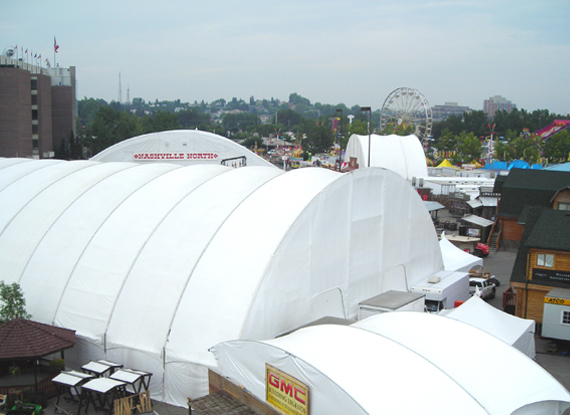

Often used for large special events, but are equally suitable for warehousing, retail and industrial use and environmental projects. ‘MODS’ are spacious and strongly built, ideal as either temporary or semi-permanent structures.
Available in widths ranging from 40 to 130’ and straight walls heights of 10, 14, or 20’.
The length can be varied by adding MODS.
|
|
|
HAIL PROTECTION STRUCTURES.....

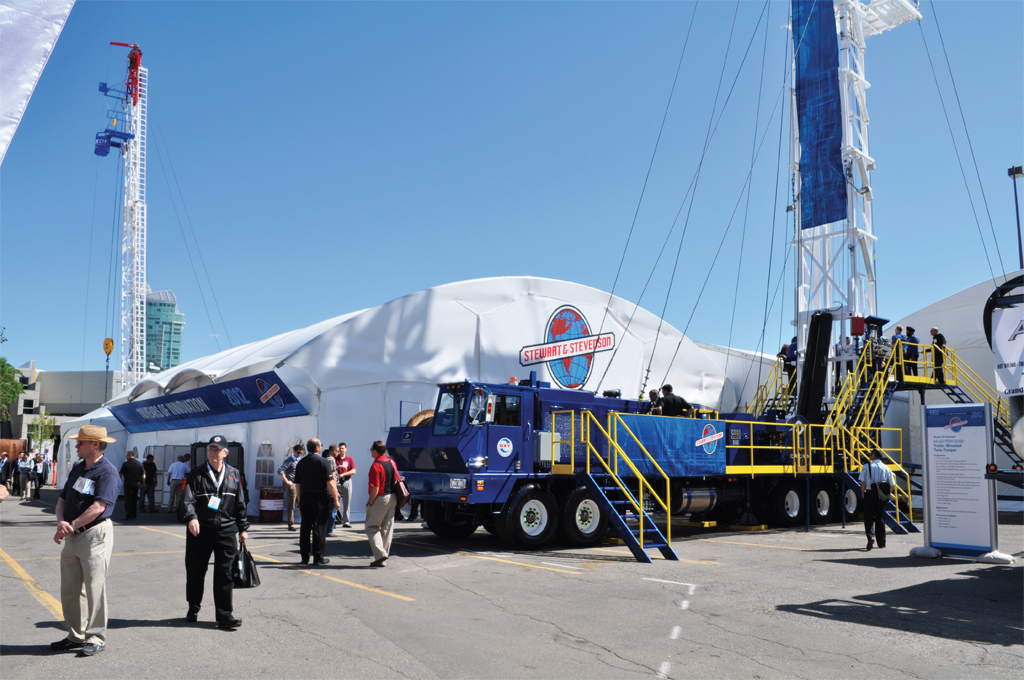

TRADESHOWS… FAIRS & EXHIBITIONS… CLUBS & RESTAURANTS…
ENTERTAINMENT…
SOCIAL FUNCTIONS… SPORTING EVENTS… CONCESSIONS… GRAND OPENINGS…
PORTABLE SHELTERS… CONSTRUCTION… WAREHOUSING… STABLING…
AGRICULTURAL…
MODULAR CLEARSPAN BUILDING FEATURES & SPECIFICATIONS
|
PORTABLE
Clearspan Modular Buildings are easy to set up, take down, and relocate.
CLEARSPAN INTERIOR

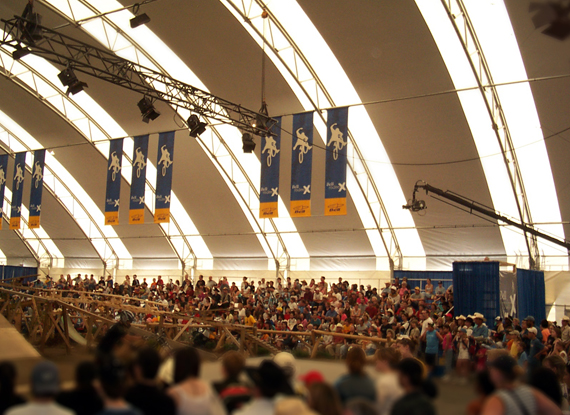

Clearspan truss framing provides an unobstructed interior for circumstances that require as much free space as possible.
EXPANDABLE
Our ClearMod Structures are expandable by standard 4.5 m (14' - 9") bay spacing. Other bay spacing is available/necessary for different snow/wind loading.
EFFICIENT
The high ceiling and obstruction-free interior allows you to make efficient use of the space. Straight walls are removable to allow for natural ventilation.
ROOF
Shaped for cover stability.
Mildew and rot resistant.
Roof panels easy to install or remove after frame is erected.
White or colours, translucent or opaque.
Fire retardant; satisfies ULC-S109 for National Building Code, also NFPA 701 large scale, California Fire Marshal.
Constructed of 19 oz., (290 pli) vinyl polyester.
SIDEWALLS
Plain or with vinyl windows.
Sidewall heights of 10', 12’, 14', 16’, 18’, and 20'.
Same fabric material as roof.
Wall panels easy to install and remove.
CARRY BAGS
Supplied with each cover with convenient handles for lifting.
FRAME
Structural steel tube truss, 55000 psi yield.
Aluminum track for attaching fabric roof panels.
Galvanized or otherwise rust resistant.
ASSEMBLY
Frame arches assembled and tipped up.
Bases can be positioned and bolted in place beforehand.
Arches secured with fixed length spreaders.
Roof panels installed after frame is complete.
Wall panels installed/removed separately from roof panels.
HARDWARE
All galvanized or otherwise rust resistant.
Grade 8 bolts.
INTERCHANGEABLE PARTS
Our ClearMod Structures share trusses, uprights, bases, spreaders, wall bars, and upright eve to reduce parts inventory.
Doors & Accessories
Vehicle doors may be added to the MOD ends, and personnel
doors can be added either to the ends or the sides of the building.
Insulation:
Bubble foil R5, Fiberglass R20 are available to reduce unwanted heat loss.
|
|
|
|
|
|
|
|
|
|
