GIGA - SPAN Series 43

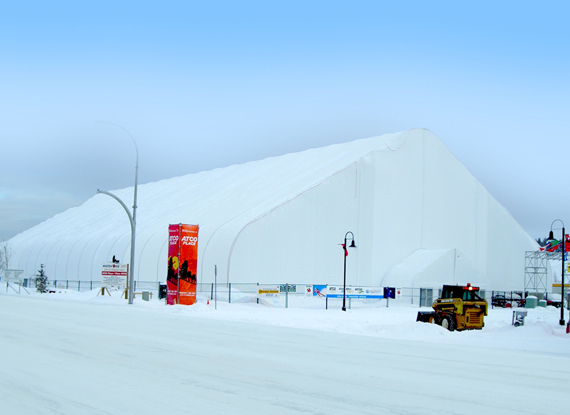

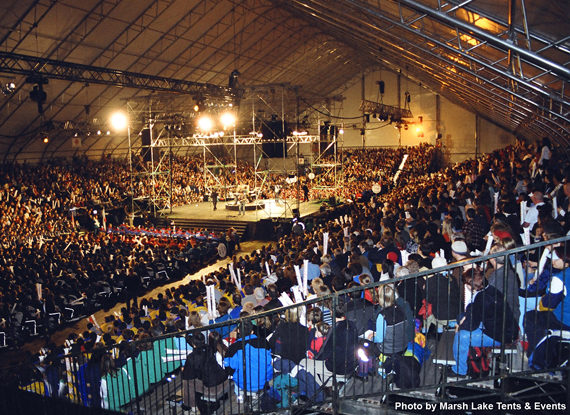

Sporting event tent

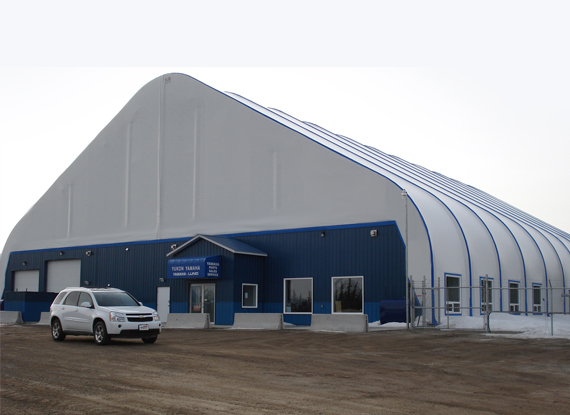

Retail showroom tent Sporting event tent

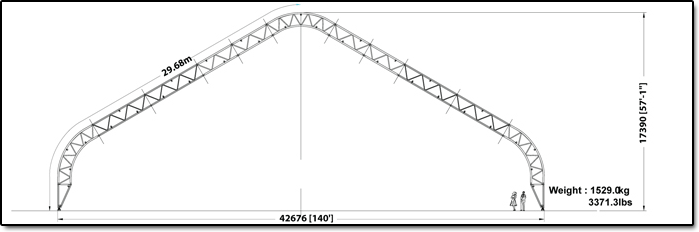

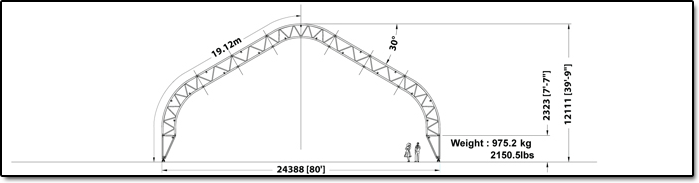

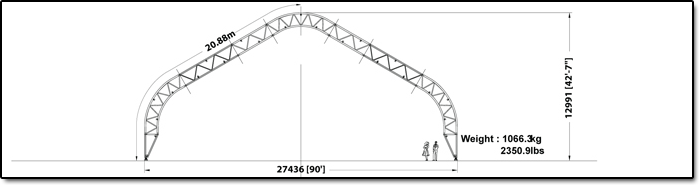

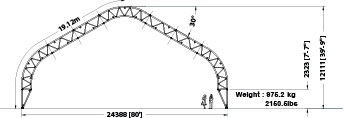

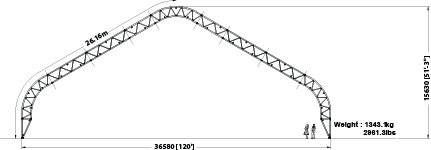

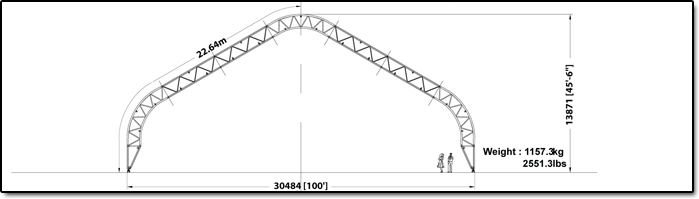

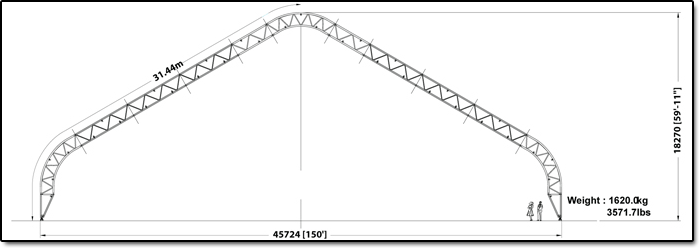

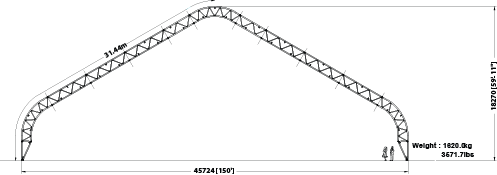

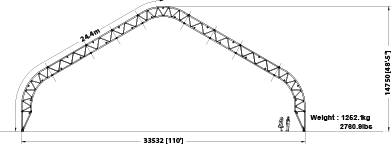

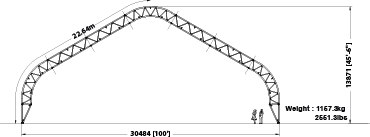

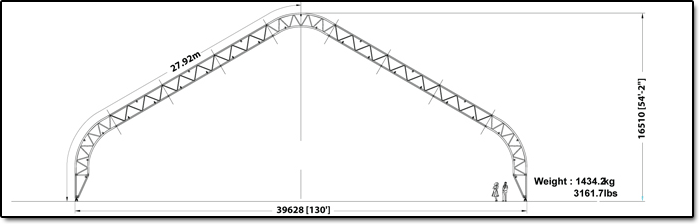

From 80' wide X 40' high

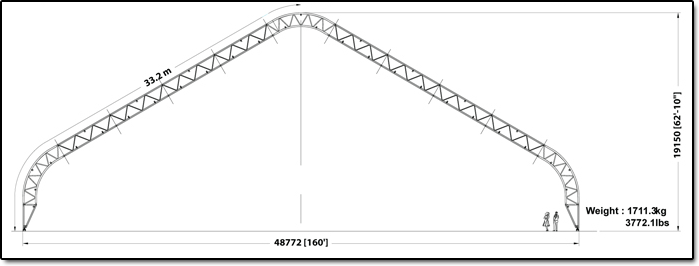

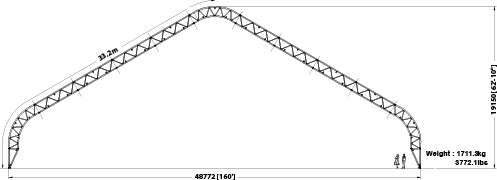

up to 160' wide X 62' high




ROOF: Shaped for cover stability. Mildew and rot resistant. Fire retardant: satisfies ULC-S109 for National Building code, and NFPA 701 large scale, Calif. Fire Marshal. Constructed of 19 oz. (290pli) vinyl/polyester.

HARDWARE:
All galvanized or otherwise rust resistant.

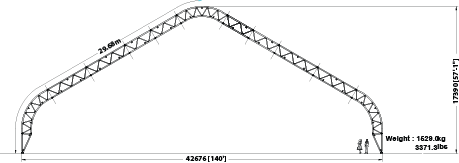

FRAMING: Structural steel tube truss, 55000 psi yield. Galvanized finish. Aluminum track for attaching fabric roof panels.

ASSEMBLY:
Frame arches assembled and tipped up. Bases can be positioned and bolted in place beforehand. Arches secured with fixed length spreaders. Roof panels installed after frame is complete. Wall panels installed/removed separately from roof panels.
